Wholesale Six route Full-band Cell Phone Signal Shielding Instrument Wifi Bluetooth Jammers

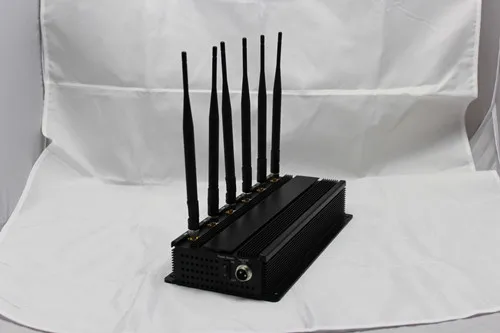

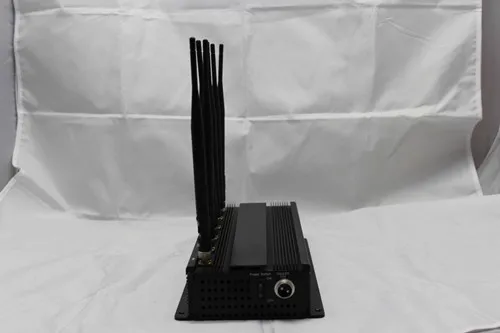

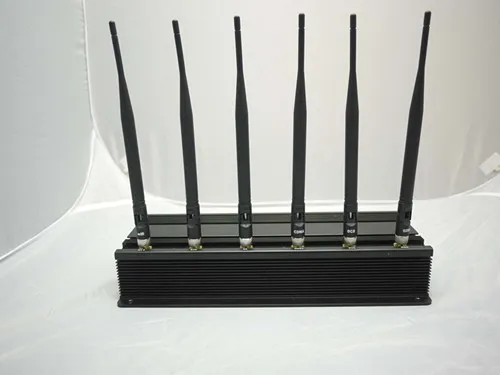

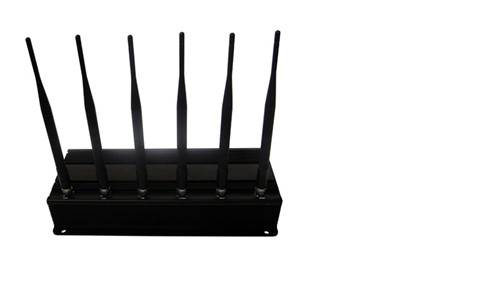

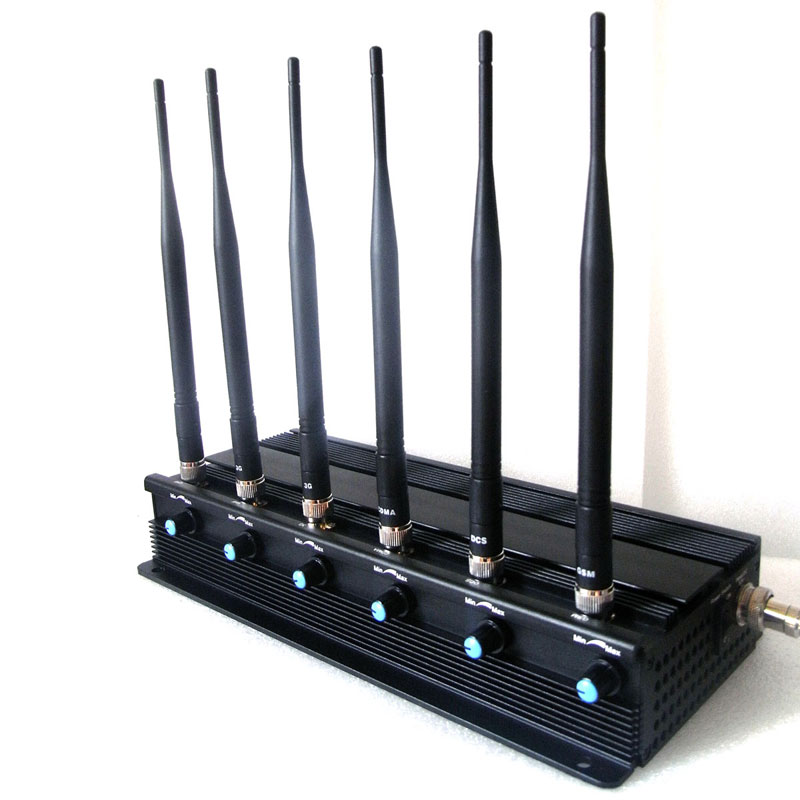

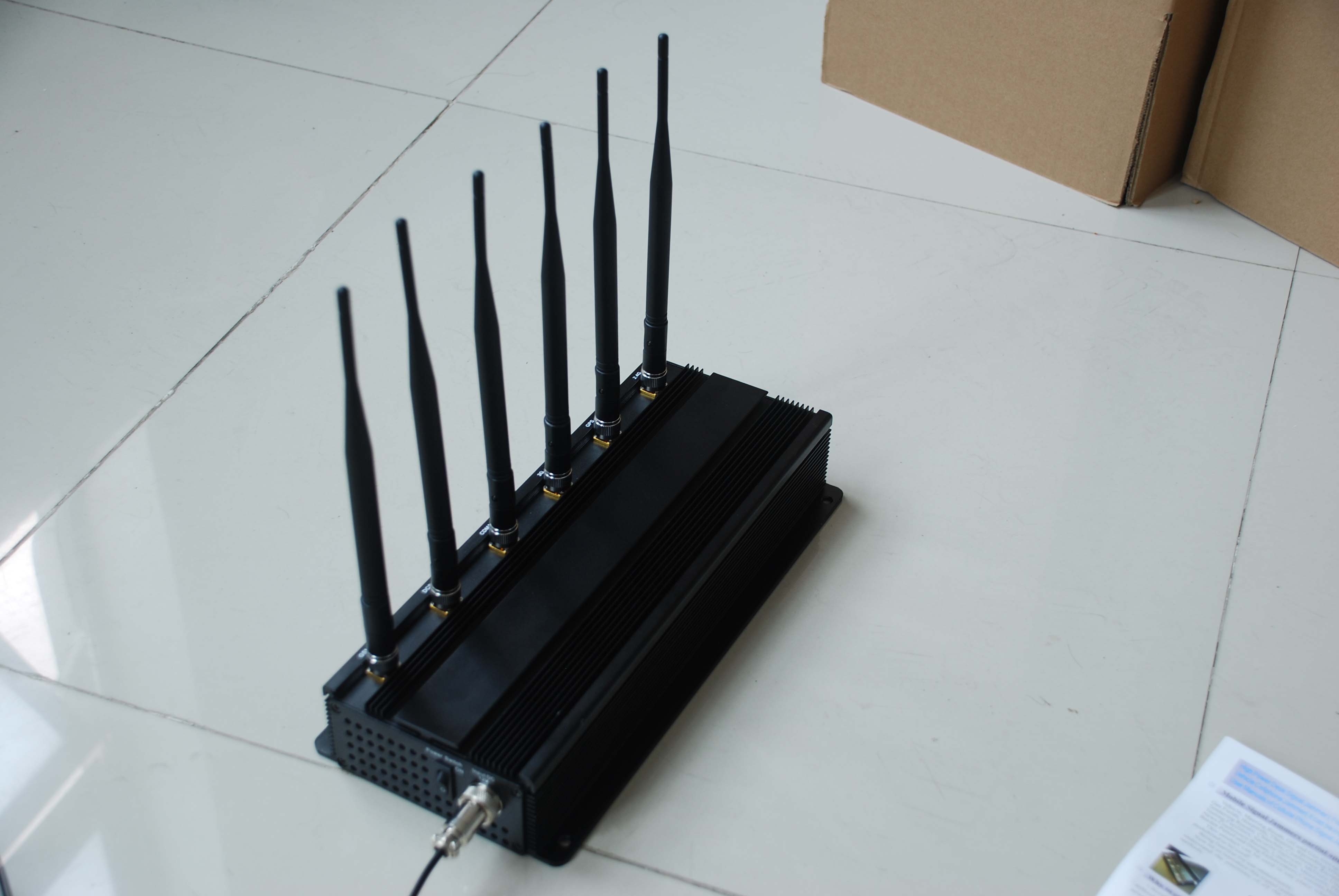

8341CA-6B Six route full-band cell phone signal shielding instrument:

The function and characteristics:

1. * Effective shielding CDMA , GSM , TD-SCDMA (netcom big informed), DCS (1800 MHZ), PHS (1900 MHZ), 3 G, 4 G Cell Phone Signal and WIFI (WLAN), 2.4 G/bluetooth communication, wireless network (QQ and weibo, etc.), a wireless signal
   * Green environmental protection, is far lower than the national standard of electromagnetic field intensity, without any impact to the human body
   *Unique cooling vents and double fan design, ensuring long time continuous and stable work.
   * built-in industrial-grade Power switching Power supply, the stability, accuracy of the signal
   * simple operation, correct installation antenna, the Power can be run automatically
   * Slow start function , effectively avoid appear lighter phenomenon when the phone is switched on
   * choose imported high-performance integrated circuit and SMT components, and adopts imported fully automatic SMT machine
   Reflow welding machine processing and assembly line production, quality, stable performance
   * fine division of each channel, only interfere with the downlink, communication will not cause interference

Technical indicators:
Electromagnetic field strength Measured values are much lower than the "Regulations for electromagnetic radiation protection limits" (GB8702-88), up to national standard.

Product features:
*To 30 meters, effective shielding distance is adjustable, the scene can be arbitrary debugging, its a Power Signal Jammer
*3G/GSM/CDMA/DCS/PHS shielding five road spectrum
*Can work 24 hours continuously
*Apply to all kinds of places
*Use high heat dissipation white aluminum shell surface can according to customer needs or silk screen logo free provide printing services
*Transmitted Power 15 w, around 3 w per antenna application places: all places

Technical Specifications:

The output end	Working frequency	Average output Power	Channel output Power
CDMA	870-880MHz	35dBm	8dBm/30KHz(min)
DCS/PHS	930-960MHz	35dBm	5dBm/30KHz(min)
3G1	1805-1918MHz	33dBm	2dBm/30KHz(min)
4G1	2010-2145MHz	33dBm	2dBm/30KHz(min)
4G2	2400-2500MHz	33dBm	2dBm/30KHz(min)
3G2	1570-1580MHz	33dBm	2dBm/30KHz(min)
2.5Kg                             size（Wide * high * deep）:140×51×305mm
*Available VHF walkie talkie or wireless remote control frequency band.   *UHF optional intercom or CDMA450M spectrum. *We provide the function of three kinds of shielding options (6) a/B/C please carefully review parameter difference, because at the same time .May have different configuration of price difference, please select the right type you need from the product list. *A configuration block the GPS signal model, we can also provide car Power charger.

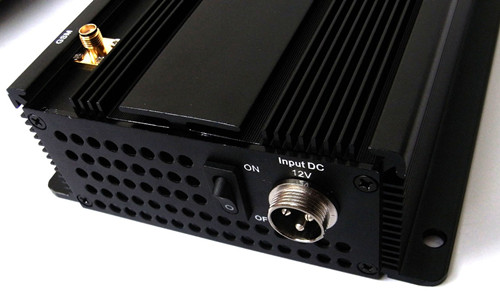

The Power supply :AC220V-DC12V                   Block radius:2-50m@Depending on the operator network signal

Cinema: as a high-end entertainment, remove noise can keep the audience appreciate the show interest.
Hospital: when can prevent the use of mobile phones, caused the harm to human body and medical equipment failure.
The court: can keep the court's solemn and sacred.
Heavily militarised: prevent military secrets leaked.
